Application-specific Ag Pastes
Key Features
A paste with a high resistance to soldering heat can be used as an alternative for applications conventionally requiring AgPd or AgPt pastes, enabling a more stable price through Pd and Pt reduction.
This Ag paste, applicable for aluminum-nitride (AIN) substates, features excellent adhesion strength and solves the current challenge that a thick coating method cannot be adopted due to unsatisfied adhesion strength.

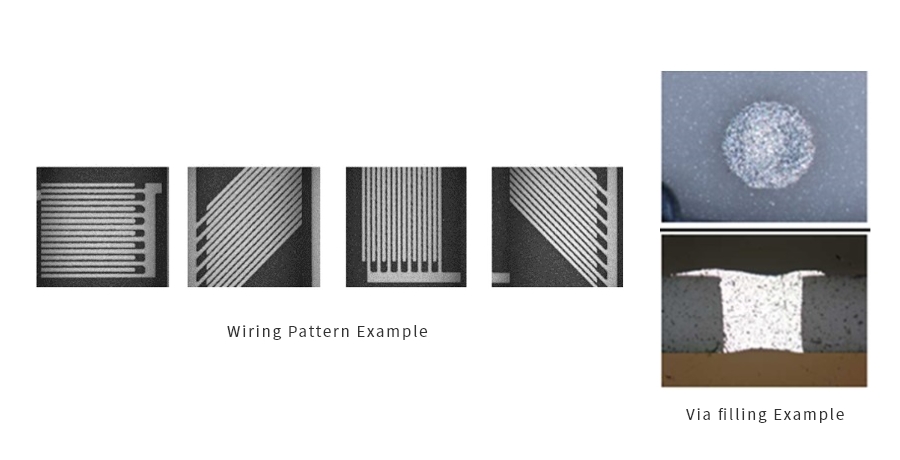

Ag paste for Via filling hardly causes any indentation due to shrinkage after curing.
Ag paste for low-resistance elements has reduced Pd content, less than 50% of conventional products.
Product Name
| Product Number | Characteristics | Viscosity [Pa･s] |
|---|---|---|
| HR4501 | High resistance to soldering heat, Resistance to migration Ag paste, Ag/Pd/Pt paste alternative | 200 |
| HR4441B | High resistance to soldering heat, Resistance to migration Ag paste, Ag/Pt paste alternative | 200 |
| HR4535 | Ag paste applicable to AIN substrates | 250 |
For inquiries regarding Ag paste for via filling and low-resistance elements, please contact us from the following inquiry page.
