Chip Resistor Protective Coatings

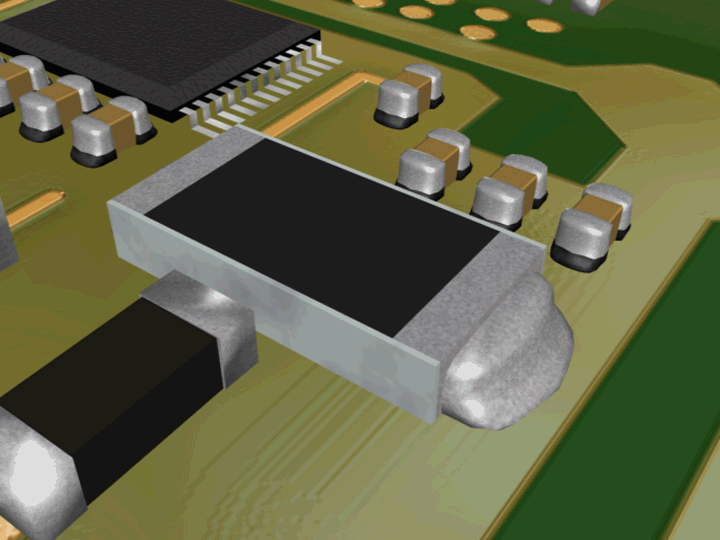

Chip resistor protective coating applications
Key Features
An insulating material that acts as a protective coating (G2) for chip resistors. This material has excellent printability and moisture resistance.
Property Data
| Product Number |
Characteristics | Hue | Curing Conditions |
Pencil Hardness |
Tg [℃] |
C.T.E ≦Tg [ppm] |
C.T.E ≧Tg [ppm] |
|---|---|---|---|---|---|---|---|
| 1012 series | Thin-film and thick-film resistors | Black, green, blue, etc. |
200℃, 30min. | 4H | 93 | 56 | 101 |
| 1020 series | Thick-film resistors | Black, white, blue, etc. |
200℃, 30min. | 4H | 95 | 40 | 150 |
| 1033 series | Thick-film resistors | Black, green, blue, etc. |
200℃, 30min. | 4H | 100 | 40 | 130 |
| 1057 series | High adhesion, high Tg and high reliability |
Black | 220℃, 20min. | 4H | 110 | 50 | 110 |
